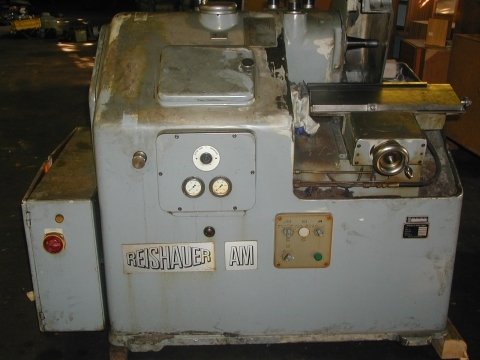

Dressing Grinder REISHAUER AM
Producer: Reishauer
Detail information:
- Type: AM 50
Technical data:
- Min./max. diameter of grinding worm wheel: 270 – 400 mm
- Bore of grinding worm wheel: 160 mm
- Width of grinding worm wheel: 62, 84 and 104 mm
- Module: 1 – 7
- Helix angle: 10 – 45°
- Axial travel of dressing slide: 145 mm
- Radial travel of dressing slide: 75 mm
- Speed of grinding worm wheel during dressing process: 70/35 rpm
- Speed of grinding worm wheel during cylindrical grinding: 650/1 280 rpm
- Grinding spindle drive: 4 kW
- Total electrical load: approx. 6 kW – 380 V – 50 Hz
- Weight, approx.: 1 500 kg
